| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Size 3 | : | 1/4 in |
| Connection Type 1 | : | Male SAE 30 deg NPTF |
| Connection Type 2 | : | Female SAE NPTF |
| Connection Type 3 | : | Female SAE NPTF |
| Connection Type | : | MNPT|FNPT|FNPT |
| Dimension Standards | : | SAE J476, SAE J514 |
| Dimensions | : | 1.97 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Tee |
| Hex Size | : | 3/4 in |
| Material Construction | : | AISI C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 5602-FG Series |
| Thread Size | : | 1/4-18 |

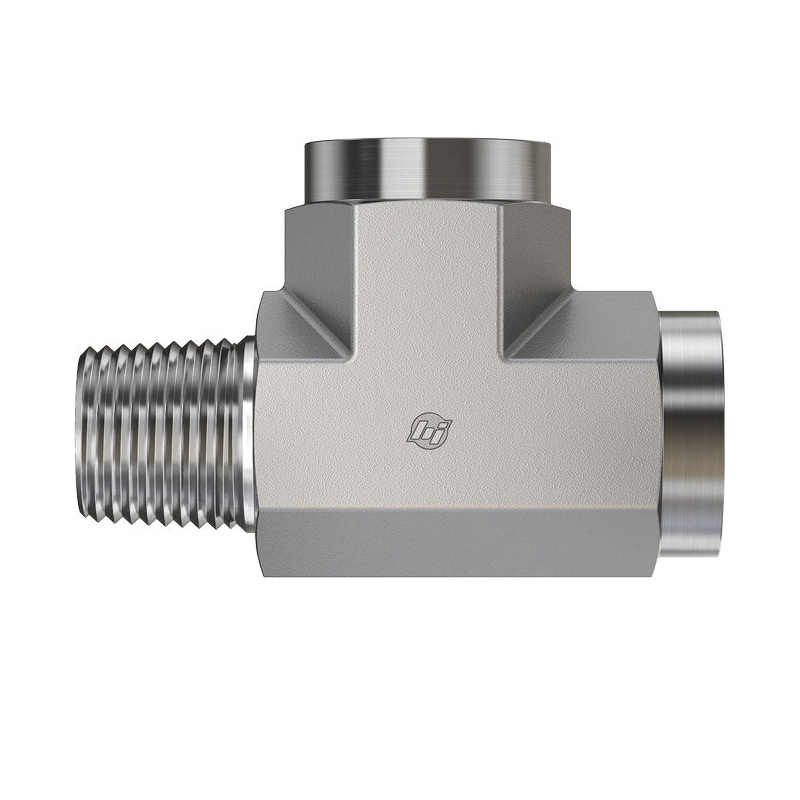

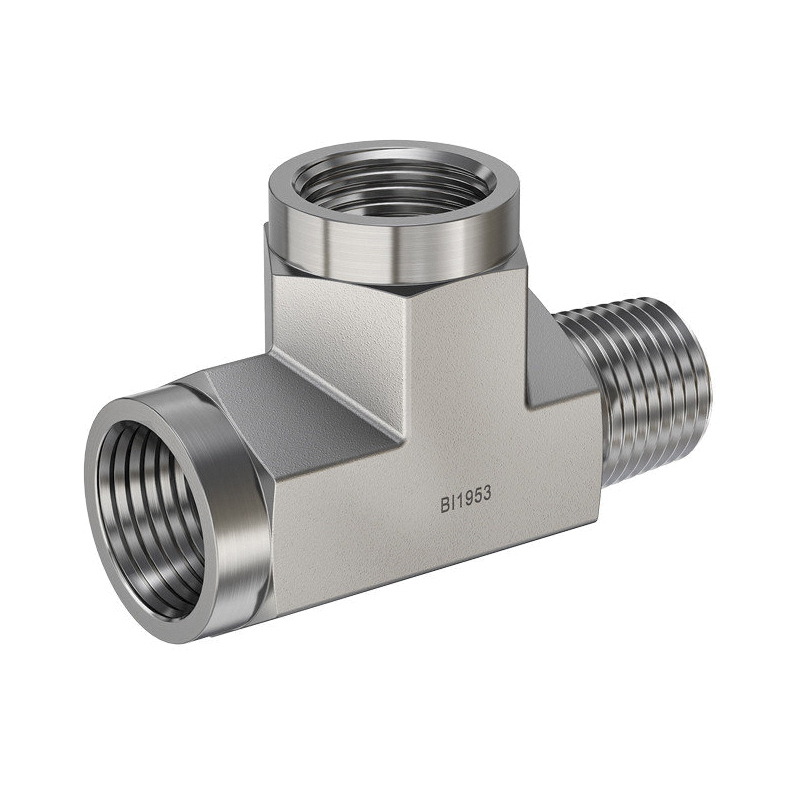

BRENNAN Street Tee, 5602-FG Series, Tee Fitting, 1/4 in Connection Size 1, Connection Type 1: Male SAE 30 deg NPTF, 1/4 in Connection Size 2, Connection Type 2: Female SAE NPTF, Connection Size 3: 1/4 in, Connection Type 3: Female SAE NPTF, MNPT|FNPT|FNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 1/4-18 Thread, 3/4 in Hex, Dimension Standards: SAE J476, SAE J514, 1.97 in L, 5000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
