| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Male SAE 30 deg NPTF |
| Connection Type 2 | : | Male SAE 30 deg NPTF |
| Connection Type | : | MNPT|MNPT |
| Dimension Standards | : | SAE J476, SAE J514 |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | 90 deg Elbow |
| Hex Size | : | 1.0662 in |
| Material Construction | : | AISI C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 4000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 5500-FG Series |
| Thread Size | : | 3/4-14 x 1/2-14 |

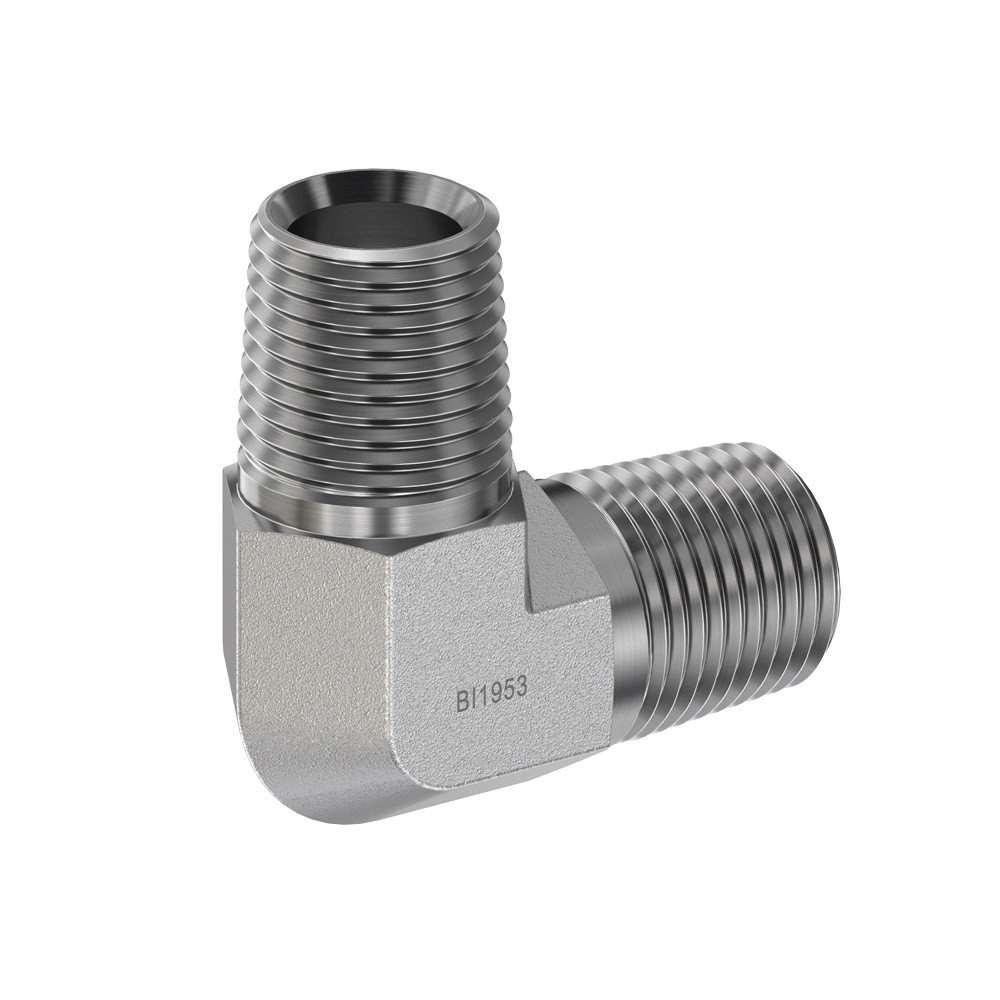

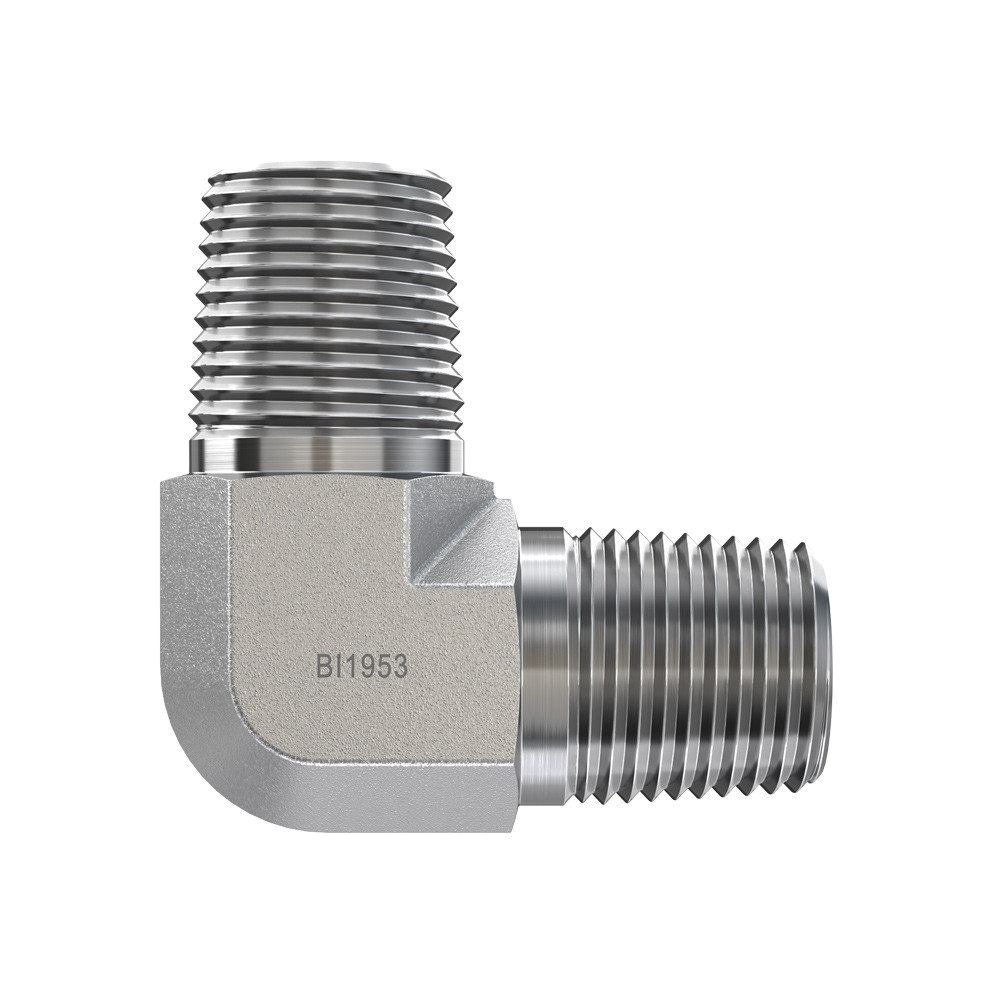

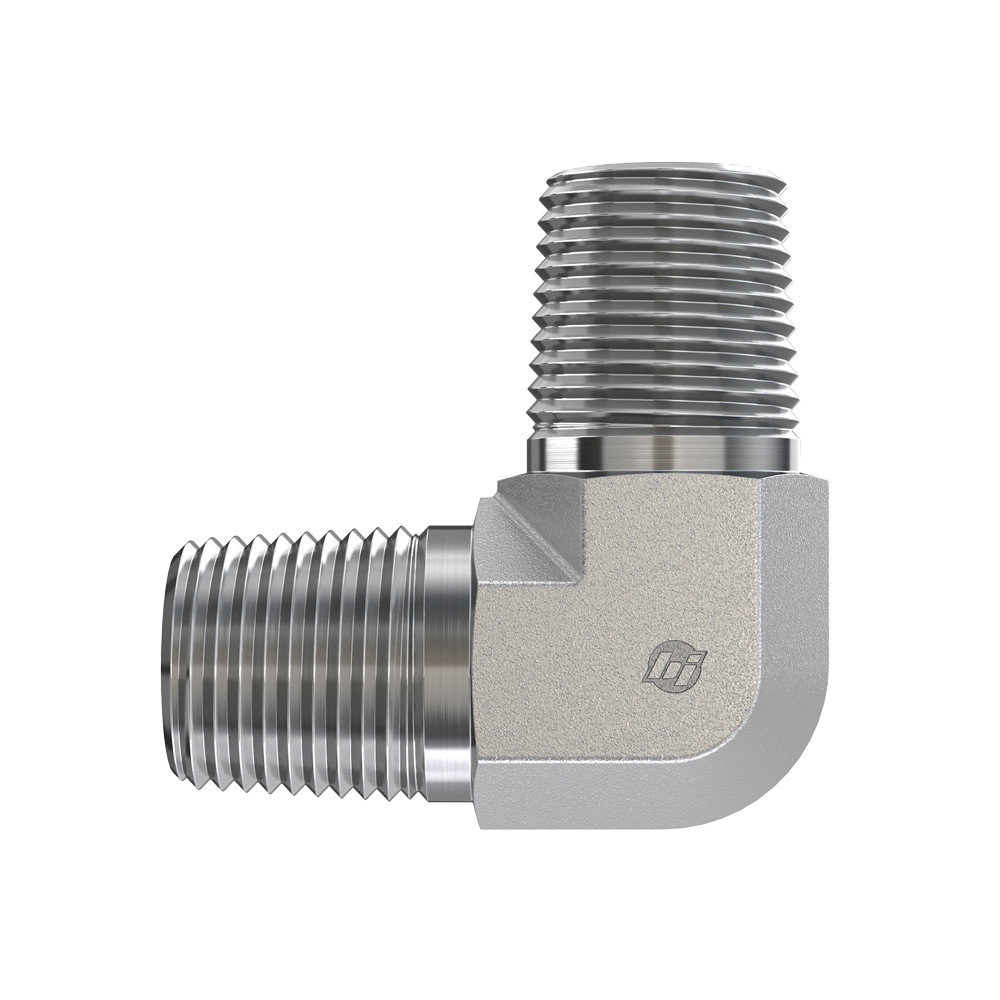

BRENNAN 90 deg Elbow, 5500-FG Series, 90 deg Elbow Fitting, 3/4 in Connection Size 1, Connection Type 1: Male SAE 30 deg NPTF, 1/2 in Connection Size 2, Connection Type 2: Male SAE 30 deg NPTF, MNPT|MNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 3/4-14 x 1/2-14 Thread, 1.0662 in Hex, Dimension Standards: SAE J476, SAE J514, 4000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
