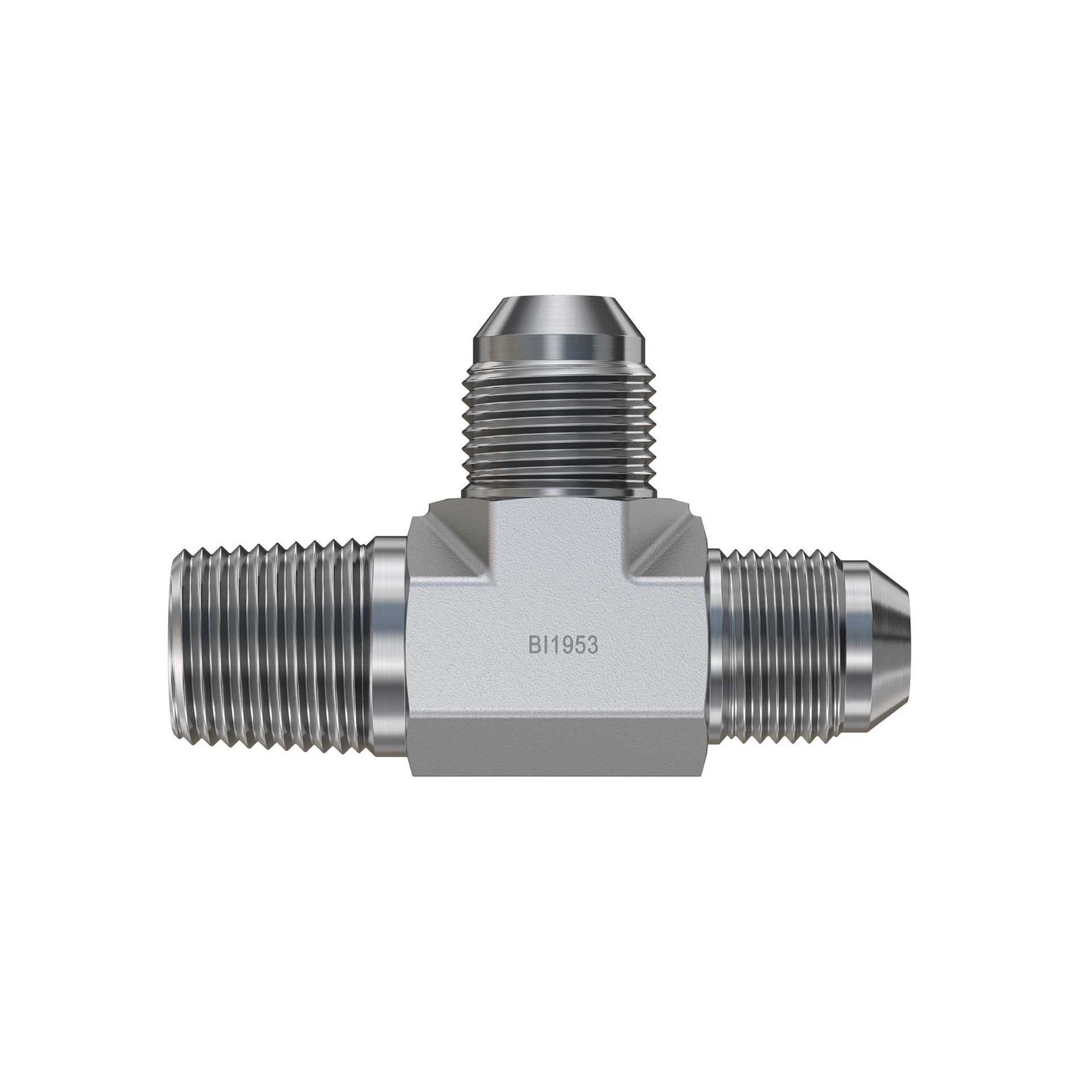

BRENNAN 2605-08-08-08-FG Run Tee, 1/2 in Male SAE 37 deg JIC Flare x 1/2 in Male SAE NPTF x 1/2 in Male SAE 37 deg JIC

Manufacturer: Brennan Industries
Brand: BRENNAN
Item Number: 1225063
MPN: 2605-08-08-08-FG
CPN:
    • Santa Fe Springs, CA
    Connection Size 1      :      1/2 in
    Connection Size 2      :      1/2 in
    Connection Size 3      :      1/2 in
    Connection Type 1      :      Male SAE 37 deg JIC Flare
    Connection Type 2      :      Male SAE NPTF
    Connection Type 3      :      Male SAE 37 deg JIC
    Connection Type      :      Male JIC|MNPT|Male JIC
    Dimension Standards      :      SAE J514, SAE J476
    Dimensions      :      2.8 in L
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      Tee
    Hex Size      :      7/8 in
    Material Construction      :      AISI C1045 Steel
    Material      :      Steel
    Maximum Operating Pressure      :      6000 psi
    Operating Temperature      :      -65 to 500 deg F
    Series      :      2605-FG Series
    Thread Size      :      3/4-16 x 1/2-14 x 3/4-16

    BRENNAN Run Tee, 2605-FG Series, Tee Fitting, 1/2 in Connection Size 1, Connection Type 1: Male SAE 37 deg JIC Flare, 1/2 in Connection Size 2, Connection Type 2: Male SAE NPTF, Connection Size 3: 1/2 in, Connection Type 3: Male SAE 37 deg JIC, Male JIC|MNPT|Male JIC Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 3/4-16 x 1/2-14 x 3/4-16 Thread, 7/8 in Hex, Dimension Standards: SAE J514, SAE J476, 2.8 in L, 6000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
