| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Female SAE 37 deg JIC Flare |
| Connection Type 2 | : | Male SAE 37 deg JIC Flare |
| Connection Type | : | Female JIC|Male JIC |
| Dimension Standards | : | SAE J514 |
| Dimensions | : | 1.46 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Reducer |
| Hex Size | : | 1-1/4 in |
| Material Construction | : | 12L14/C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 2406 Series |
| Thread Size | : | 1-1/16-12 x 9/16-18 |

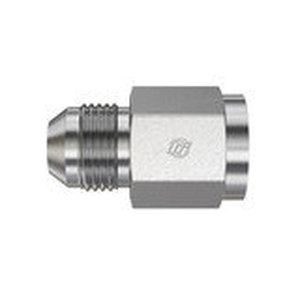

BRENNAN Non-Swivel Straight Reducer, 2406 Series, Reducer Fitting, 3/4 in Connection Size 1, Connection Type 1: Female SAE 37 deg JIC Flare, 3/8 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC Flare, Female JIC|Male JIC Connection, Steel, Material Construction: 12L14/C1045 Steel, Finish: Trivalent Zinc-Plated, 1-1/16-12 x 9/16-18 Thread, 1-1/4 in Hex, Dimension Standards: SAE J514, 1.46 in L, 5000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
