| Additional Information | : | 8 to 108 s Cycle Time |
| Color | : | Yellow |
| Finish | : | Powder-Coated |
| Product Type | : | Lifter |
| Specifications | : | 400 lb Lift Capacity, 3000 psi Pressure Rating, 2 to 2.5 gpm Flow Rating |
| Suitable For Use With | : | Standard Domestic Style 2-Bar Roll-Out Carts |

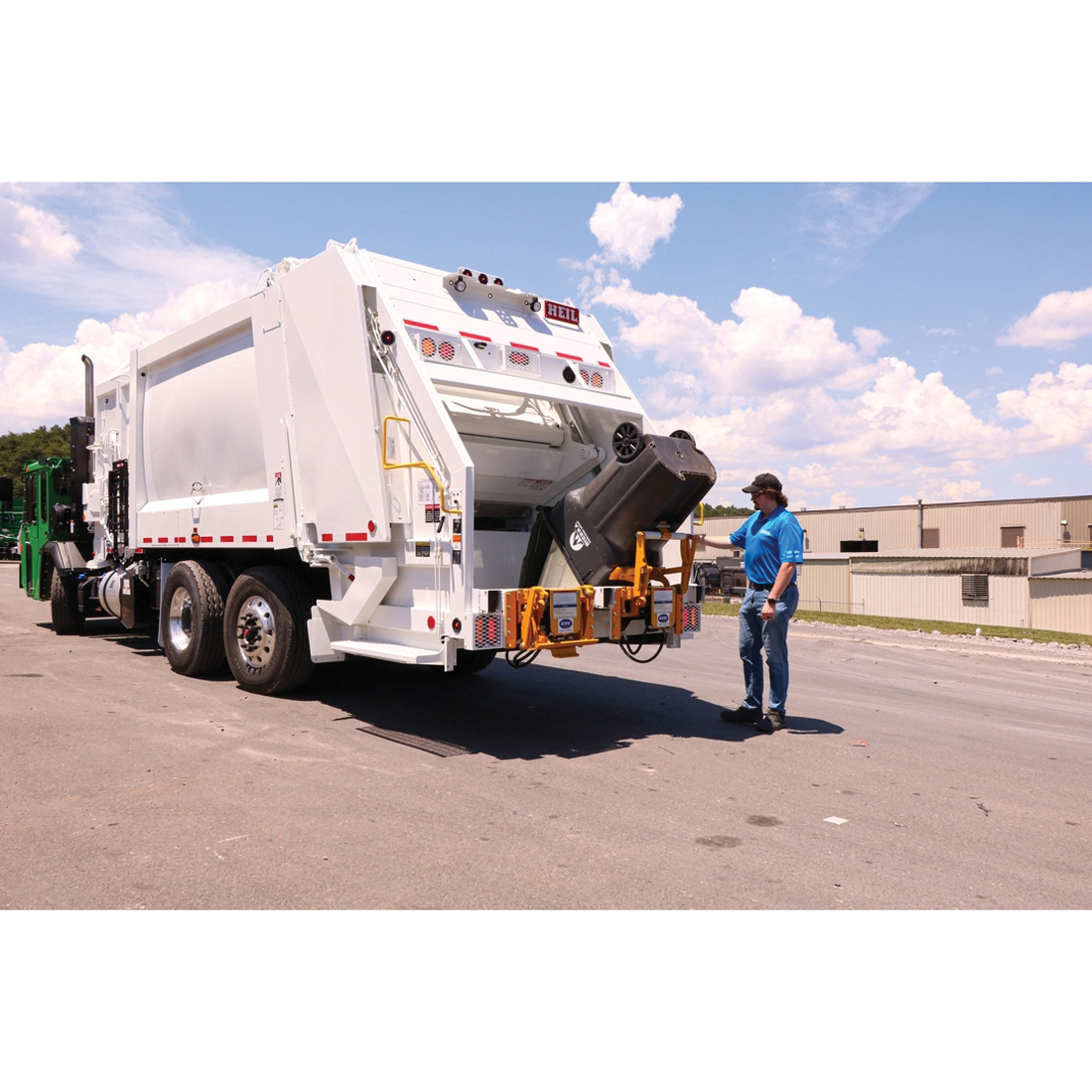

The Revolution® is an advanced modern cart lifter from Bayne Premium Lift Systems. This patented design incorporates a sweeping action that automatically adjusts for uneven terrain, preventing operators from having to lift carts onto the lift plate. The Revolution was specifically designed to offer the most ground clearance possible for rear load applications. This feature makes it a perfect choice for rear load applications with commercial container lift bars and provides the versatility to pick up both residential and commercial waste on the same route.
Bayne Thinline® Revolution® HD Lifter Assembly, Specifications: 400 lb Lift Capacity, 3000 psi Pressure Rating, 2 to 2.5 gpm Flow Rating, Finish: Powder-Coated, Yellow, For Use With: Standard Domestic Style 2-Bar Roll-Out Carts, Additional Information: 8 to 108 s Cycle Time
- Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
- Compatible with standard domestic style 2-bar roll-out carts
- Sweeping motion allows for an increased cart pick-up envelope
- Over 22'' of ground clearance
- Compact design works in conjunction with most commercial container lift bars
- Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
- Self-lubricating composite bearings at main pivot points
- Powder-coated finish for durability
- 2-Year Limited Warranty
