| Additional Information | : | 6 to 8 s Cycle Time |
| Color | : | Yellow |
| Compatible Equipment | : | Garbage Trucks |
| Finish | : | Powder-Coated |
| Product Type | : | Lifter |
| Series | : | BTL 1110 Series |
| Specifications | : | 400 lb Lift Capacity, 3000 psi Pressure Rating, 2 to 2.5 gpm Flow Rating |
| Suitable For Use With | : | Standard Domestic Style 2-Bar Carts |

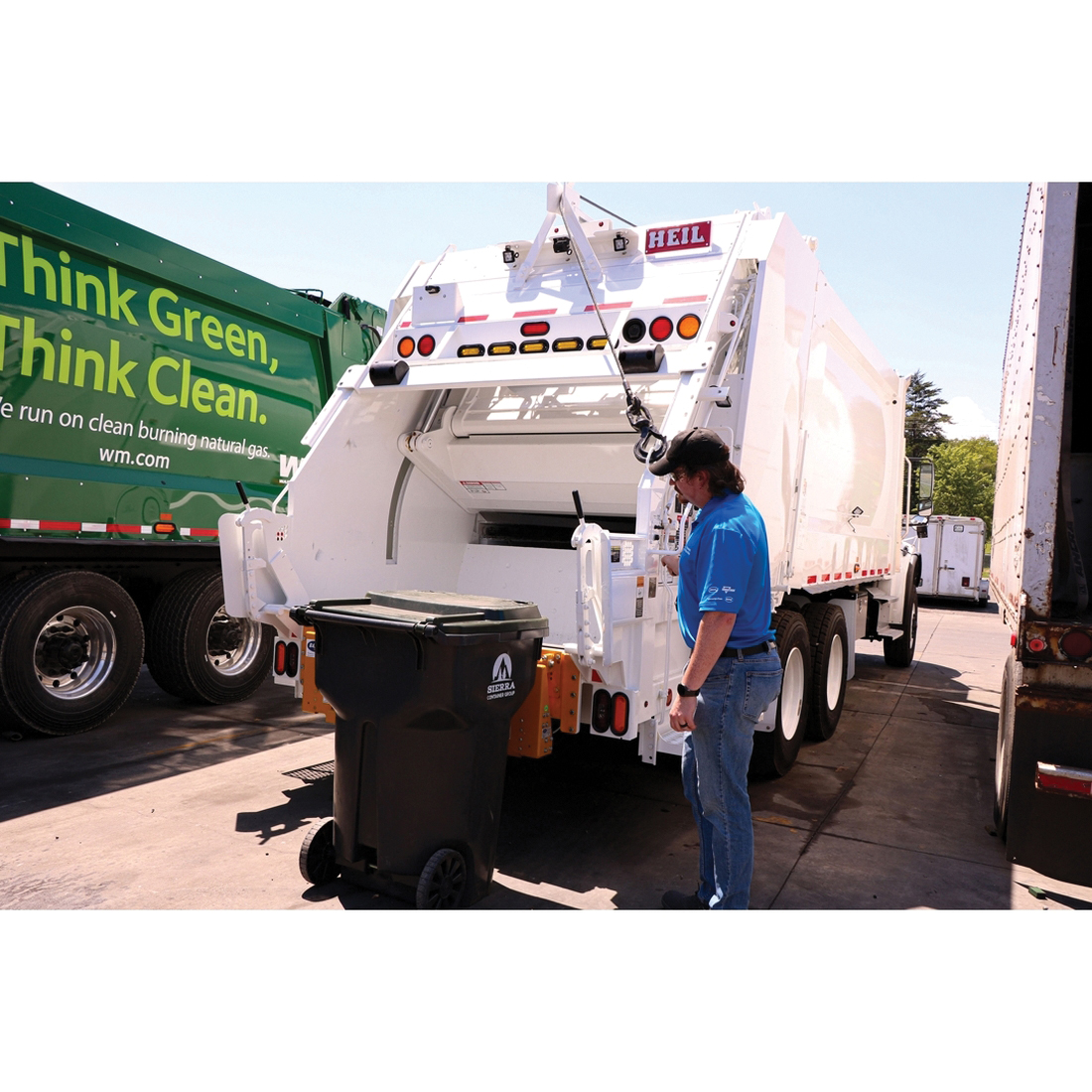

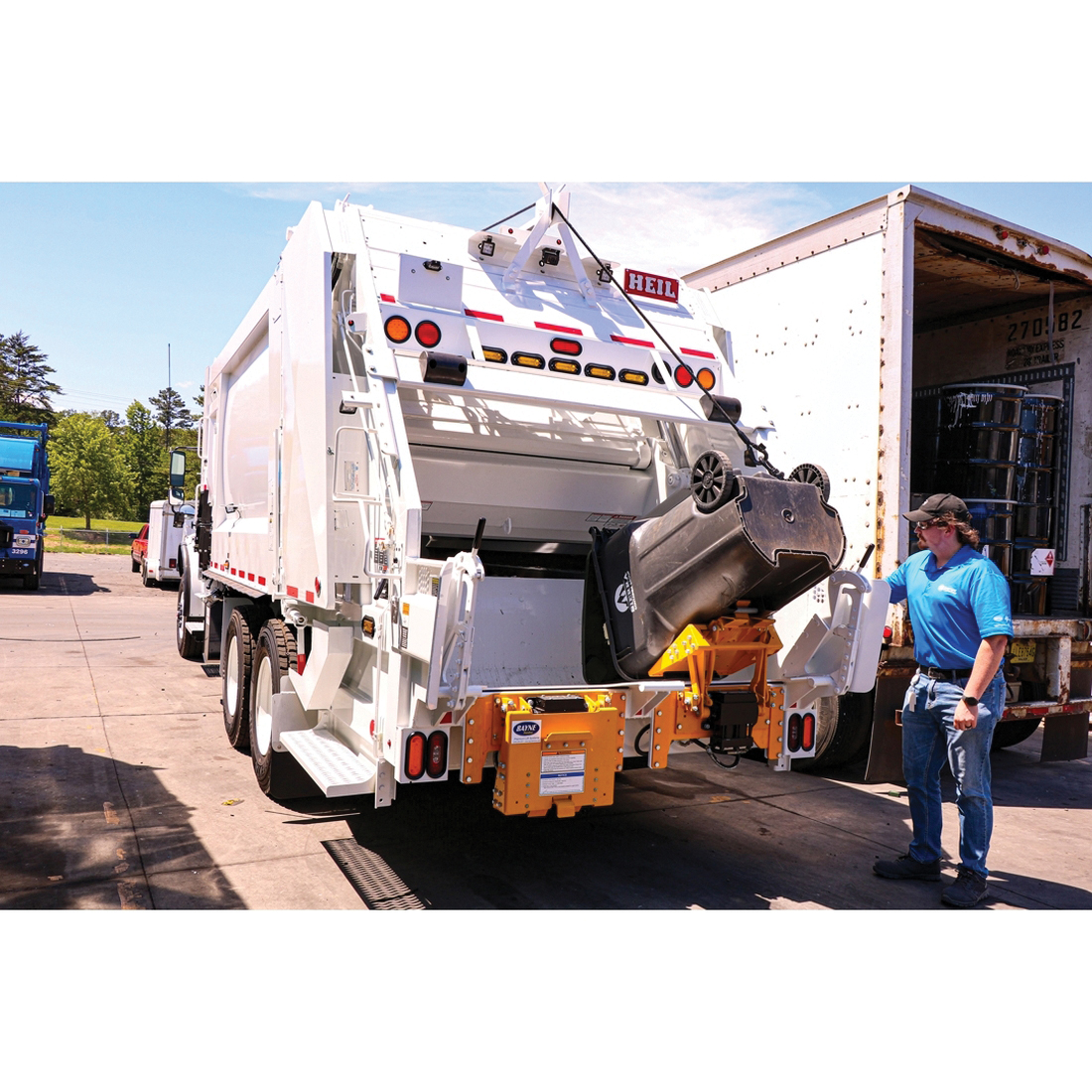

The BTL series is one of the bestselling lines of garbage truck cart lifters from Bayne Premium Lift Systems. This cart lifter, or cart tipper, was specifically designed to offer greater ground clearance for rear load applications, thus reducing the risk of damaging the lifter on uneven terrain such as alley entrances, landfills, etc. This additional ground clearance makes the BTL a perfect choice for rear load applications with commercial container lift bars. BTL cart lifters maybe combined with a vertical assembly to make a VBTL lifter. VBTL models add 9" of vertical travel and 3 1/2" of thickness to the BTL lifter.
Bayne Thinline® Lifter Assembly, BTL 1110 Series, Specifications: 400 lb Lift Capacity, 3000 psi Pressure Rating, 2 to 2.5 gpm Flow Rating, Finish: Powder-Coated, Yellow, For Use With: Standard Domestic Style 2-Bar Carts, Garbage Trucks Compatible Equipment, Additional Information: 6 to 8 s Cycle Time
- Powered by the patented Thinline® rack-and-pinion rotary actuator for smooth operation
- Compatible with standard domestic style 2-bar carts
- Over 21″ of ground clearance
- Thinline design works in conjunction with most commercial container lift bars
- Dumps cart higher and deeper inside the hopper opening to prevent spillage and increase route stops before cycling packer panel
- Self-lubricating composite bearings at main pivot points
- Powder-coated finish for durability
- 2-Year Limited Warranty
