Bandit 3590XL

Bandit 3590XL Drum-Style Chipper, New Equipment, 875 to 1200 hp, Diesel Fuel, 36 in Dia Log

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 3590XL
MPN: 3590XL
CPN:
Model #: 3590XL
  • Add-On Options Available      :      Microchip Drum
    Axle Capacity      :      25000 lb
    Brake Type      :      Air
    Condition      :      New
    Control Type      :      Remote
    Dimensions      :      43 ft 5 in L x 11 ft 10 in W x 12 ft 6 in H
    Discharge Type      :      Stationary Swivel
    Divisions      :      CAL_LINE
    Drum Diameter      :      48 in
    Drum Width      :      48 in
    Engine Horsepower      :      875 to 1200 hp
    Engine Manufacturer      :      CAT®
    Feed Rate      :      90 fpm
    Feed System Type      :      Slide Box
    Feed Type      :      Whole Tree
    Feed Wheel Diameter      :      15-3/4 in Top, 10-5/8 in Bottom
    Feed Wheel Width      :      48 in
    Fuel Tank Capacity      :      350 gal
    Fuel Type      :      Diesel
    Hydraulic Tank Capacity      :      200 gal
    Knife Count      :      8
    Knife Size      :      12-1/8 in L x 6 in W x 5/8 in THK
    Machine Weight      :      74000 to 77000 lb
    Maximum Log Diameter      :      36 in
    Mobility Type      :      Towable
    Model      :      3590XL
    Number of Axle      :      3
    Number of Tires      :      12
    Paint Color      :      Bandit Yellow|Green
    Tire Size      :      11 R22.5
    Undercarriage Type      :      Rubber Tire

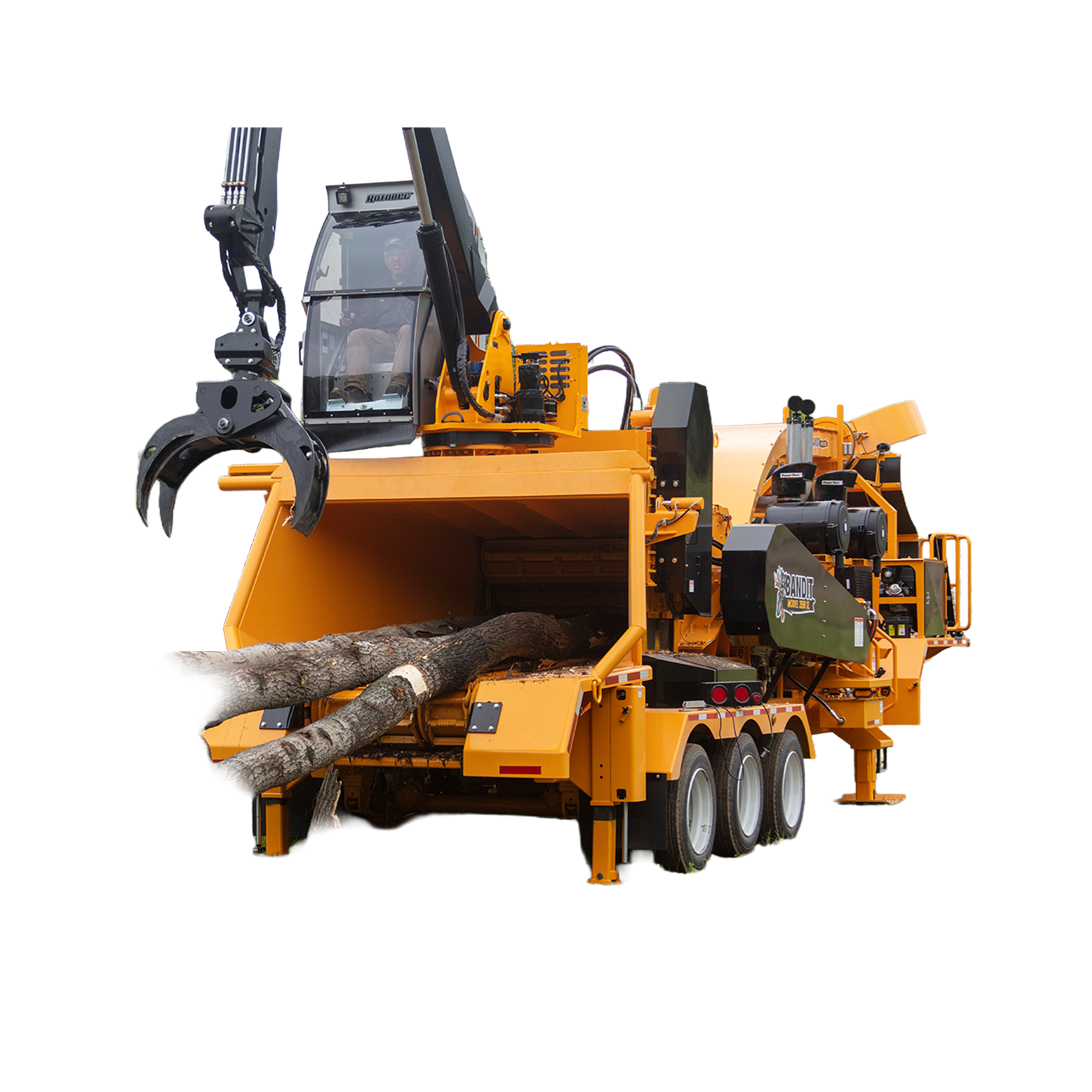

    The Bandit® Model 3590XL is simply the most productive whole tree chipper on the market. It features a 36-inch by 48-inch throat opening, behind which lies a massive 48-inch diameter chipping drum. Feeding the 3590XL is a super-sized three-wheel feed system that can pull in, crush, and compress even the hardest forked branches and largest whole trees. This amazing machine can fully load a 45-foot trailer in approximately eight minutes, without the need for an additional chip accelerator. Engine options ranging from 875 to 1,200 horsepower are available. The standard 7 1/2' long infeed conveyor assists with pulling material into the chipper.

    Bandit Drum-Style Chipper, Model: 3590XL, New Condition, 875 to 1200 hp Engine Horsepower, CAT® Engine Manufacturer, 36 in Maximum Log Diameter, 48 in Drum Diameter, 48 in Drum Width, Diesel Fuel, 350 gal Fuel Tank Capacity, 200 gal Hydraulic Tank Capacity, 8 Knife Count, 12-1/8 in L x 6 in W x 5/8 in THK Knife Size, Whole Tree Feed, Slide Box Feed System, 90 fpm Feed Rate, 15-3/4 in Top, 10-5/8 in Bottom Feed Wheel Diameter, 48 in Feed Wheel Width, Stationary Swivel Discharge, Towable Mobility, Rubber Tire Undercarriage, 25000 lb Axle Capacity, 3 Axle, Air Brake, Remote Control, 11 R22.5 Tire, 12 Tires, Bandit Yellow|Green Paint Color, Add-On Options Available: Microchip Drum, 43 ft 5 in L x 11 ft 10 in W x 12 ft 6 in H, 74000 to 77000 lb Machine Weight

      48" diameter X 48" wide chipper drum with (8) knives
