Bandit 2460XP - Track

Bandit THE BEAST® 2460XP - Track Horizontal Grinder, New Equipment, 536 hp, 24 in Hopper

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 2460XP - Track
MPN: 2460XP - Track
CPN:
Model #: 2460XP - Track
  • Add-On Options Available      :      320L Steel Tracks Equipped with Caterpillar Track Undercarriage
    Additional Information      :      36 in Dia x 60 in W Cuttermill
    Condition      :      New
    Control Type      :      Remote
    Conveyor Length      :      24 ft 10 in
    Dimensions      :      472 in L x 117 in W x 151 in H
    Discharge Height      :      15 ft
    Discharge Type      :      Conveyor
    Divisions      :      CAL_LINE
    Engine Horsepower      :      536 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      250 gal
    Fuel Type      :      Diesel
    Hopper Capacity      :      24 in
    Hydraulic Tank Capacity      :      120 gal
    Infeed Opening Size      :      11 ft 8 in L x 60 in W
    Infeed Type      :      Conveyor
    Machine Weight      :      62500 lb
    Maximum Feed Size      :      60 in W x 24 in H
    Mobility Type      :      Track
    Model      :      2460XP - Track
    Number of Hammers/Teeth      :      30
    Paint Color      :      Bandit Yellow|Green
    Screen Type      :      Replaceable
    Undercarriage Type      :      Steel Track

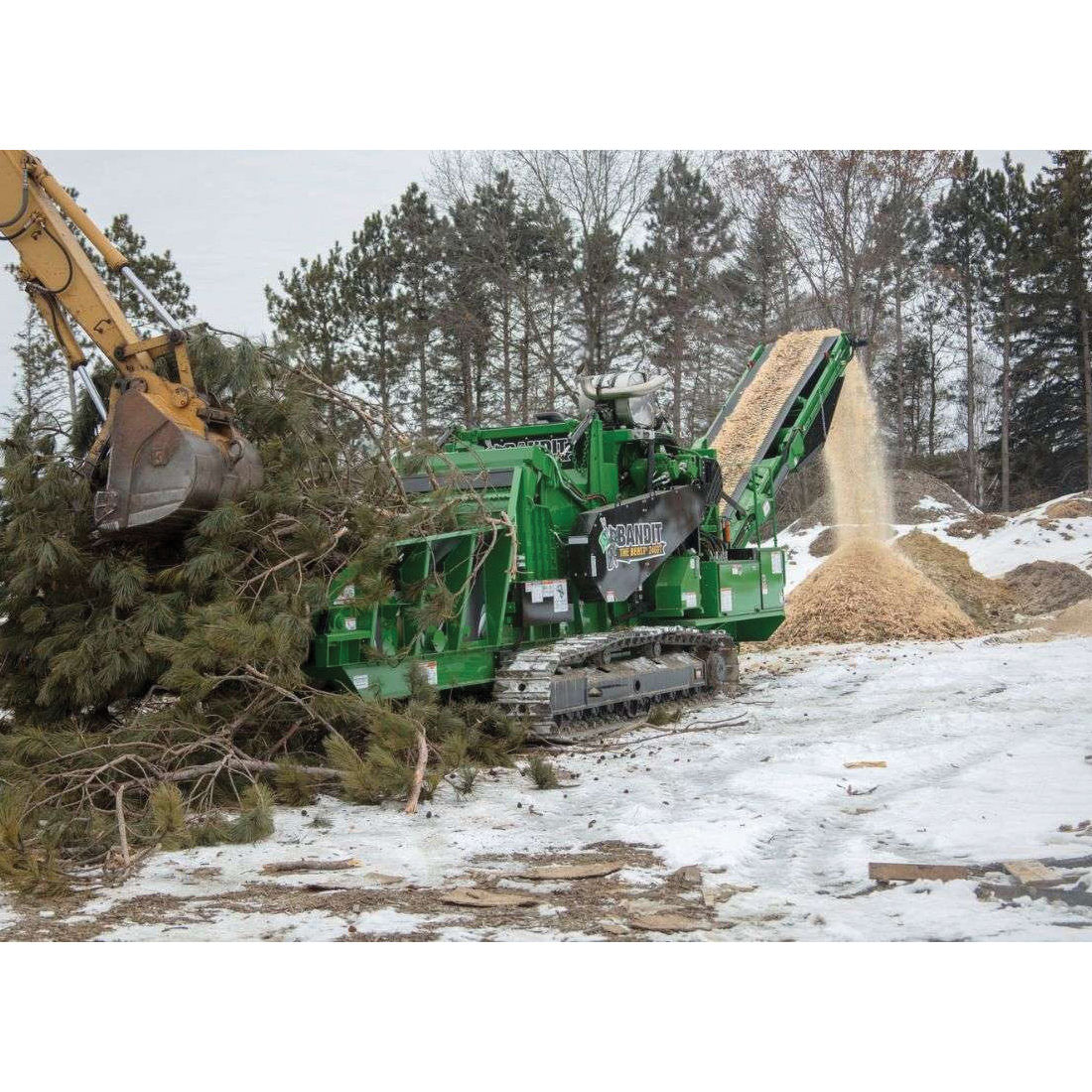

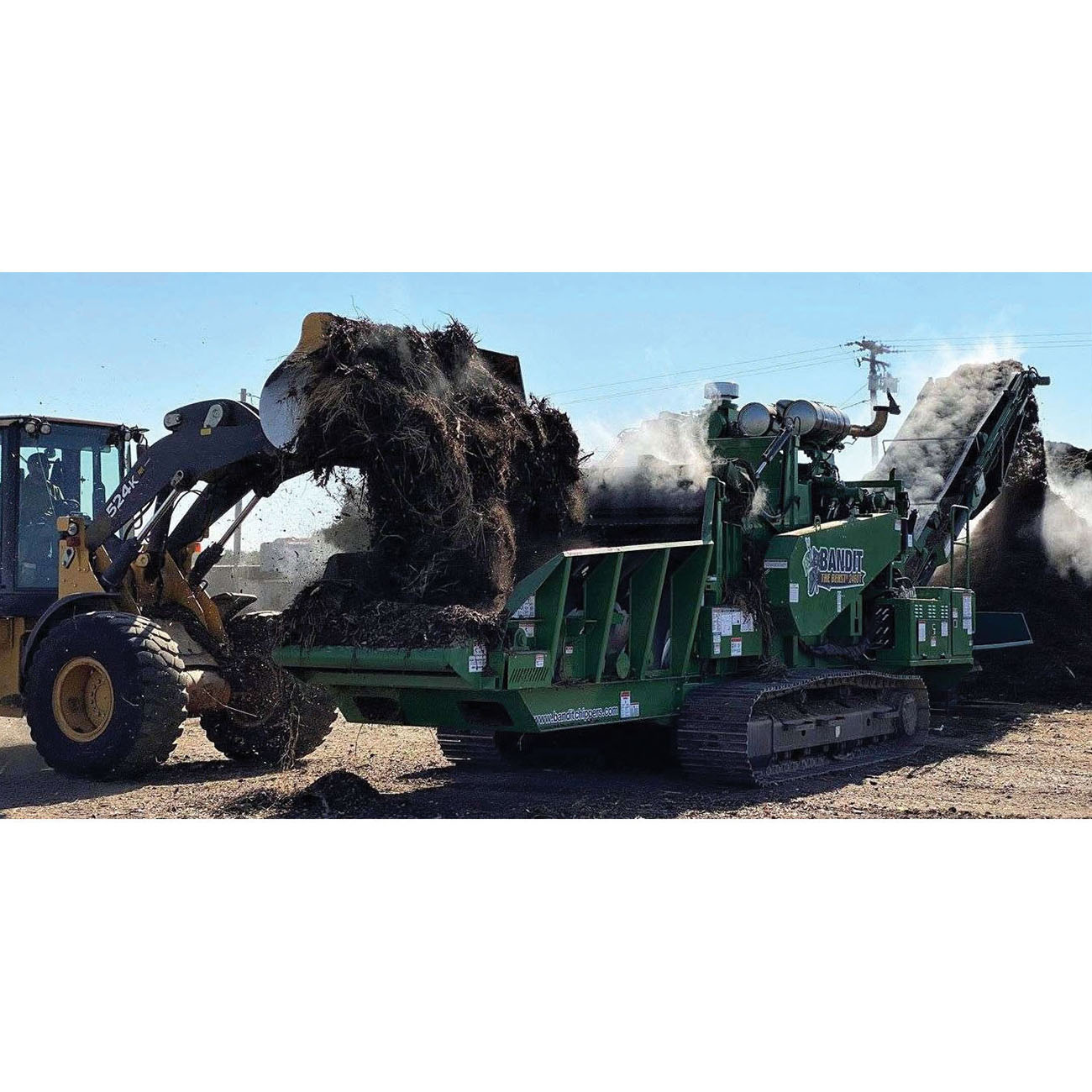

    The Beast® Model 2460XP track will out perform all other grinders in its size class. The 2460XP is equipped with a 60 wide by 30 diameter cuttermill and a 24 high x 60 wide mill opening. This machine uses a 30-tooth cuttermill running Bandit's saw-tooth style cutterbodies that regulate the size of the tooth's bite. Most of the material is sized in the initial cut, so material exits the large screening area quicker. A Caterpillar C13B, 536 horsepower engine is standard and a wide variety of tooth and screen options are available to adequately process and size material. Two side screens are easily changed by being removed from the side of the machine. A Caterpillar 320BL steel track undercarriage is standard and all track and grinding functions are controlled via a wireless radio remote control with tether back-up. A secondary and primary discharge allows material to exit the grinding chamber quickly and features a magnetic head pulley at the end for separating nails from the mulch pile. A 11' 8 long x 60 infeed with double slat design track style infeed conveyor provides ample room for feeding a wide variety of material. A 20 diameter feed wheel further assists with pulling material into the mill.

    Bandit THE BEAST® Horizontal Grinder, Model: 2460XP - Track, New Condition, 536 hp Engine Horsepower, CAT® Engine Manufacturer, Diesel Fuel, 250 gal Fuel Tank Capacity, 120 gal Hydraulic Tank Capacity, 30 Hammers/Teeth, 60 in W x 24 in H Maximum Feed Size, 24 in Hopper Capacity, 11 ft 8 in L x 60 in W Infeed Opening Size, Conveyor Infeed, Replaceable Screen, Conveyor Discharge, 24 ft 10 in Conveyor Length, 15 ft Discharge Height, Track Mobility, Steel Track Undercarriage, Remote Control, Bandit Yellow|Green Paint Color, Add-On Options Available: 320L Steel Tracks Equipped with Caterpillar Track Undercarriage, 472 in L x 117 in W x 151 in H, 62500 lb Machine Weight, Additional Information: 36 in Dia x 60 in W Cuttermill

      Caterpillar 320L Steel track undercarriage
