Bandit 2290

Bandit 2290 Drum-Style Chipper, New Equipment, 415 to 525 hp, Diesel Fuel, 22 in Dia Log

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 2290
MPN: 2290
CPN:
Model #: 2290
  • Add-On Options Available      :      Cab and Kesla Loader
    Condition      :      New
    Control Type      :      Remote
    Dimensions      :      303 in L x 118 in W x 137 in H
    Discharge Rotation      :      50 deg
    Discharge Type      :      Forestry Style Stationary
    Divisions      :      CAL_LINE
    Drum Diameter      :      37 in
    Drum Width      :      24 in
    Engine Horsepower      :      415 to 525 hp
    Engine Manufacturer      :      CAT®
    Feed System Type      :      Slide Box
    Feed Type      :      Whole Tree
    Feed Wheel Diameter      :      27 in Top, 10-5/8 in Bottom
    Feed Wheel Width      :      32 in
    Fuel Tank Capacity      :      150 gal
    Fuel Type      :      Diesel
    Hydraulic Tank Capacity      :      100 gal
    Knife Count      :      4
    Knife Size      :      12 in L x 5-1/2 in W x 5/8 in THK
    Machine Weight      :      43000 lb
    Maximum Log Diameter      :      22 in
    Mobility Type      :      Track
    Model      :      2290 - Track
    Paint Color      :      Bandit Yellow|Green
    Undercarriage Type      :      Steel Track

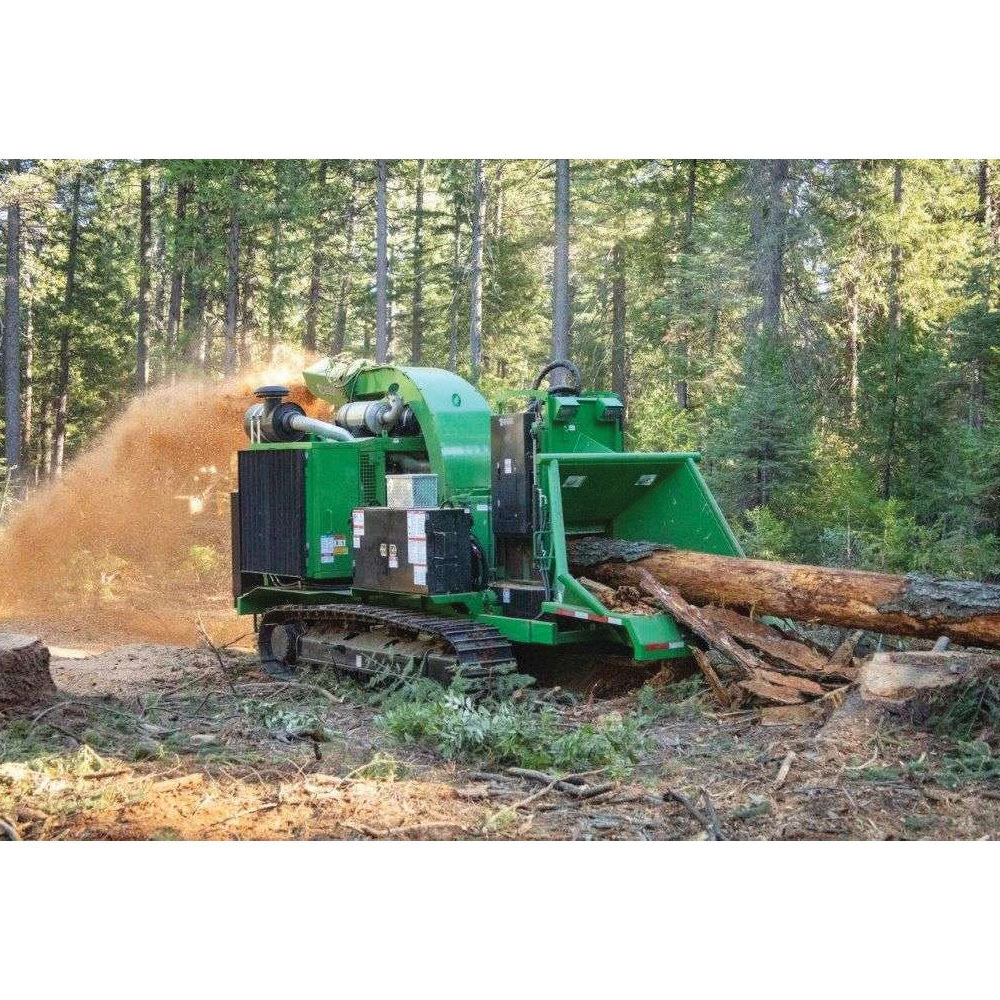

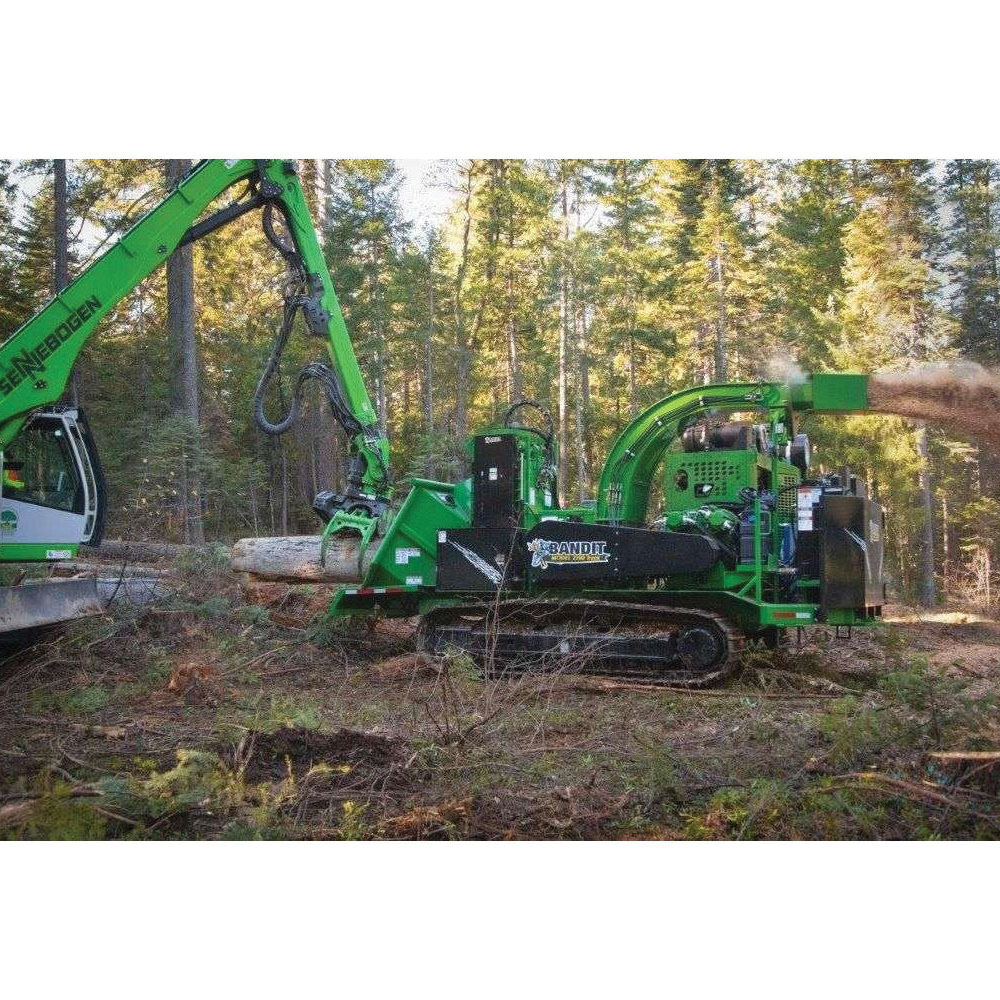

    Popular for its great combination of size, production, all-terrain performance, and price, the 22-inch capacity Model 2290 Track whole tree chipper is a favorite for right-a-way and land clearing operations. Its 26.25-inch by 24.5-inch throat opening easily accepts large diameter, brushy material. Dual feed wheels in Bandit's unique Slide Box Feed System provide the industry's best pulling and crushing power. It rides on a Caterpillar 315L steel track undercarriage with the choice of single, double, or triple grouser track pads. Caterpillar, Cummins, or John Deere engines are available ranging from 350 to 525 horsepower. A standard option including a 5 1/2' infeed conveyor, and optional Kesla loader controlled by radio remote or from a roomy operators cab are available to choose from.

    Bandit Drum-Style Chipper, Model: 2290 - Track, New Condition, 415 to 525 hp Engine Horsepower, CAT® Engine Manufacturer, Diesel Fuel, 22 in Maximum Log Diameter, 37 in Drum Diameter, 24 in Drum Width, 150 gal Fuel Tank Capacity, 100 gal Hydraulic Tank Capacity, 4 Knife Count, 12 in L x 5-1/2 in W x 5/8 in THK Knife Size, Whole Tree Feed, Slide Box Feed System, 27 in Top, 10-5/8 in Bottom Feed Wheel Diameter, 32 in Feed Wheel Width, 50 deg Discharge Rotation, Forestry Style Stationary Discharge, Track Mobility, Steel Track Undercarriage, Remote Control, Bandit Yellow|Green Paint Color, Add-On Options Available: Cab and Kesla Loader, 303 in L x 118 in W x 137 in H, 43000 lb Machine Weight

      37" diameter x 24" wide drum with four babbitted knives and counter knives
