Bandit 20XP - Track

Bandit 20XP - Track Drum-Style Chipper, New Equipment, 275, 300, 321, 350 hp, Diesel Fuel

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 20XP - Track
MPN: 20XP - Track
CPN:
Model #: 20XP - Track
  • Add-On Options Available      :      Forestry Style Discharge
    Condition      :      New
    Dimensions      :      220 in L x 102 in W x 128 in H
    Discharge Rotation      :      270 deg
    Discharge Type      :      Hydraulic Swivel
    Divisions      :      CAL_LINE
    Drum Diameter      :      37 in
    Drum Width      :      24 in
    Engine Horsepower      :      275, 300, 321, 350 hp
    Engine Manufacturer      :      CAT®, JOHN DEERE, Cummins®
    Feed System Type      :      Slide Box
    Feed Type      :      Whole Tree
    Feed Wheel Diameter      :      32 in
    Fuel Tank Capacity      :      50 gal
    Fuel Type      :      Diesel
    Hydraulic Tank Capacity      :      50 gal
    Machine Weight      :      22000 lb
    Maximum Log Diameter      :      22 in
    Mobility Type      :      Track
    Model      :      20XP - Track
    Paint Color      :      Bandit Yellow|Green
    Undercarriage Type      :      Steel Track

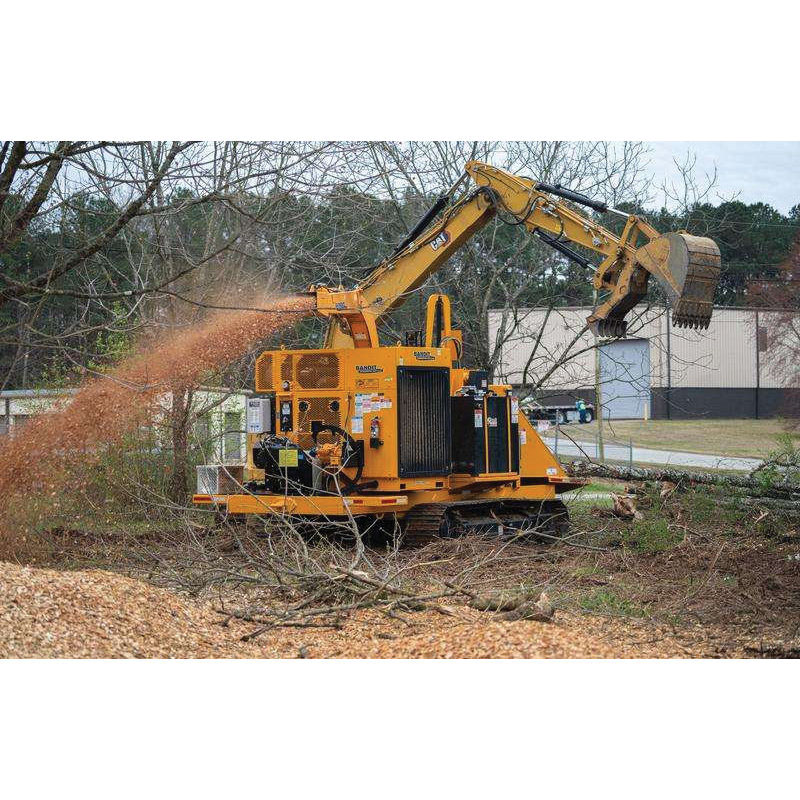

    The 20XP is an entry level whole tree track chipper and a great choice for those looking at a compact, yet rugged machine for lot and land clearing applications. Officially rated as a 22-inch capacity machine, this exceptionally versatile chipper actually features a large 26.25-inch by 24.5-inch throat opening to easily handle large whole trees. A Caterpillar 308 or 312B steel track undercarriage provides a stable travel platform. Caterpillar, Cummins or John Deere engines are available ranging from 275 to 350 horsepower and a standard wireless radio remote control with tether back-up will control all chipper functions. With an open top infeed hopper, the 20XP can easily be fed with a loader and the standard 5 1/2' infeed conveyor further assists with feeding material into the chipper drum. The standard 270 degree hydraulic swivel discharge allows for broadcasting chips or an optional forestry style discharge can be ordered for additional chip throwing velocity. A loader is also available as an option eliminating the need for an additional loader on site.

    Bandit Drum-Style Chipper, Model: 20XP - Track, New Condition, 275, 300, 321, 350 hp Engine Horsepower, CAT®, JOHN DEERE, Cummins® Engine Manufacturer, Diesel Fuel, 22 in Maximum Log Diameter, 37 in Drum Diameter, 24 in Drum Width, 50 gal Fuel Tank Capacity, 50 gal Hydraulic Tank Capacity, Whole Tree Feed, Slide Box Feed System, 32 in Feed Wheel Diameter, 270 deg Discharge Rotation, Hydraulic Swivel Discharge, Track Mobility, Steel Track Undercarriage, Bandit Yellow|Green Paint Color, Add-On Options Available: Forestry Style Discharge, 220 in L x 102 in W x 128 in H, 22000 lb Machine Weight

      37" diameter x 24" wide drum with four knives
