Bandit 20XP

Bandit 20XP Drum-Style Chipper, New Equipment, 277, 300, 321, 350 hp, Diesel Fuel, 22 in Dia Log

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 20XP
MPN: 20XP
CPN:
Model #: 20XP
  • Add-On Options Available      :      5-1/2 ft Infeed Conveyor
    Axle Capacity      :      12000 lb
    Brake Type      :      Electric
    Condition      :      New
    Control Type      :      Remote
    Dimensions      :      220 in L x 102 in W x 128 in H
    Discharge Rotation      :      270 deg
    Discharge Type      :      Hydraulic Controlled Swivel
    Divisions      :      CAL_LINE
    Drum Diameter      :      37 in
    Drum Width      :      24 in
    Engine Horsepower      :      277, 300, 321, 350 hp
    Engine Manufacturer      :      CAT®, JOHN DEERE, Cummins®
    Feed System Type      :      Slide Box
    Feed Type      :      Whole Tree
    Feed Wheel Diameter      :      32 in
    Fuel Tank Capacity      :      60 gal
    Fuel Type      :      Diesel
    Hydraulic Tank Capacity      :      30 gal
    Machine Weight      :      20000 lb
    Maximum Log Diameter      :      22 in
    Mobility Type      :      Towable
    Model      :      20XP
    Paint Color      :      Bandit Yellow|Green
    Undercarriage Type      :      Rubber Tire

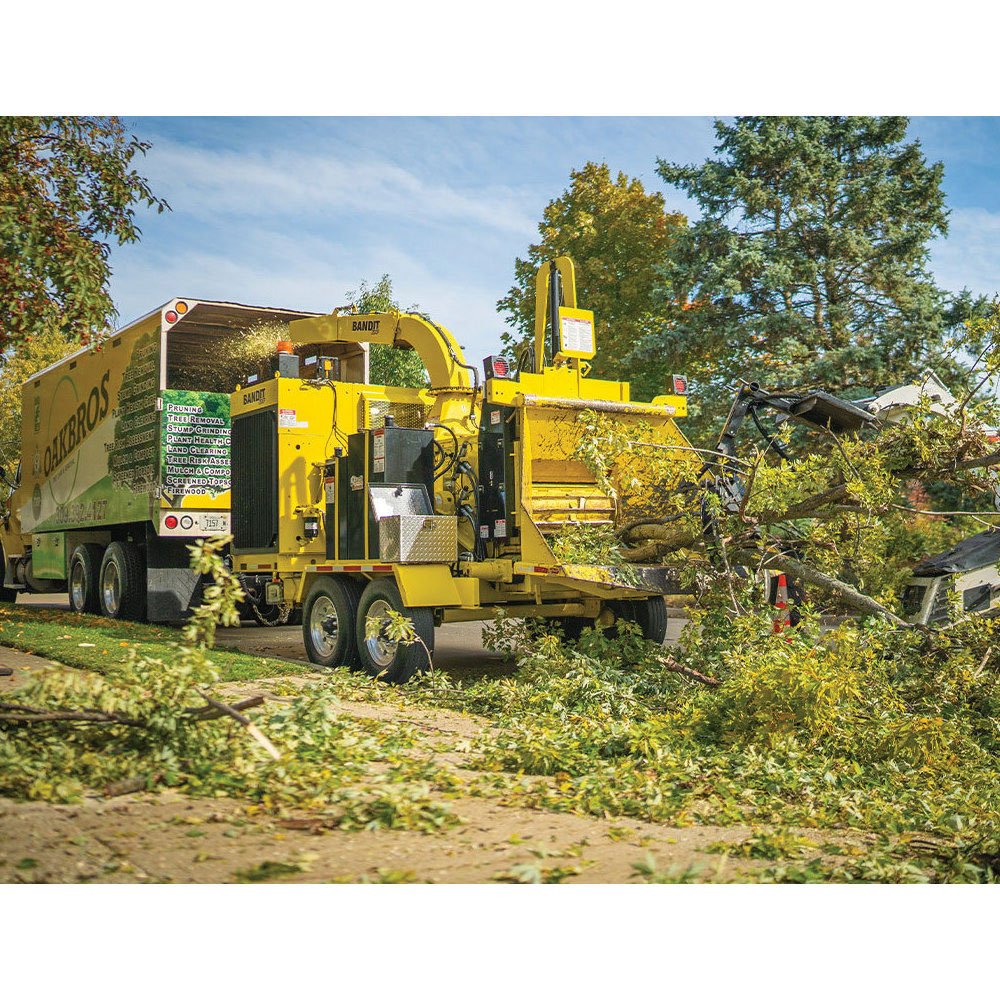

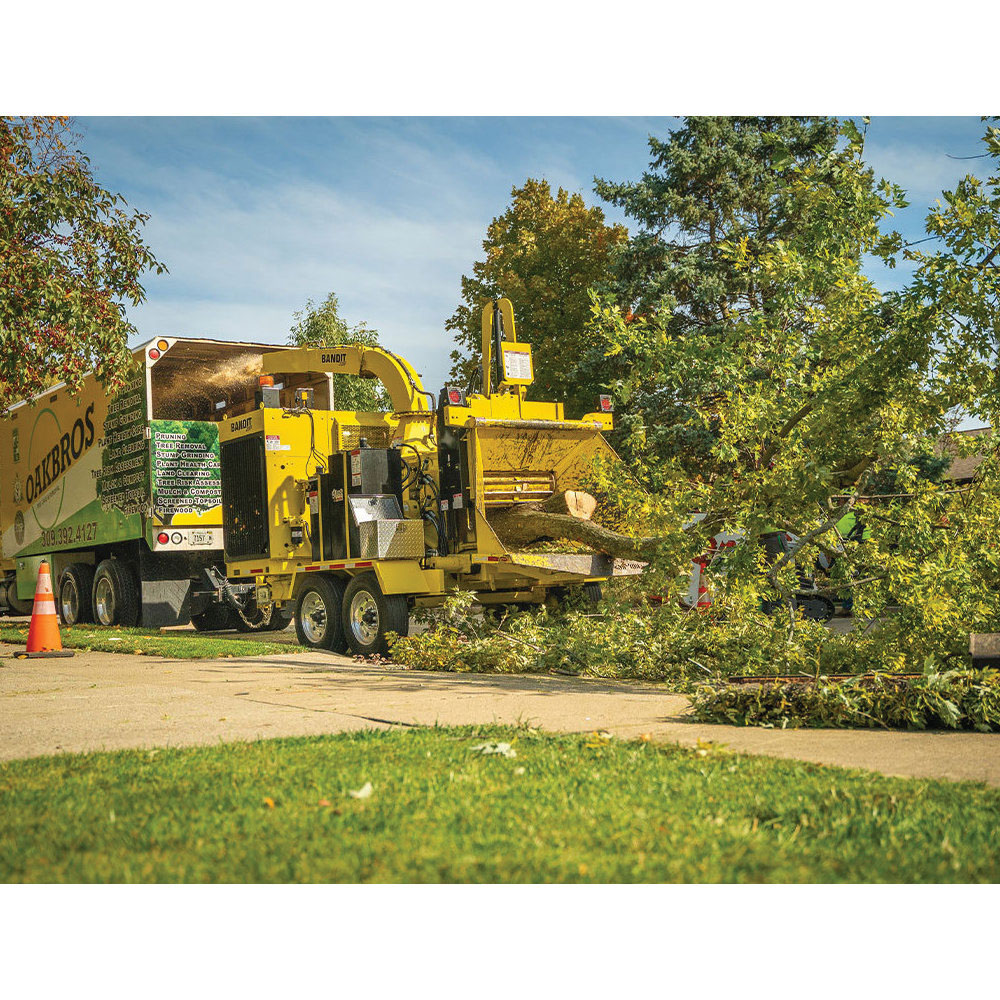

    The 20XP is an entry level, towable whole tree chipper and a great choice for those looking for a compact, yet rugged machine. Officially rated as a 22-inch capacity machine, this exceptionally versatile chipper actually features a large 26.25-inch by 24.5-inch throat opening to easily handle large whole trees. Bandit's Slide Box Feed System has no problem pulling in and crushing the most stubborn forked limbs and dense hardwood. Caterpillar, Cummins or John Deere engines are available ranging from 275 to 350 horsepower. A standard wireless radio remote control with tether back-up controls all chipper functions. With an open top infeed hopper, the 20XP can easily be fed with a loader and the optional 5 1/2' infeed conveyor further assists with feeding material into the chipper drum. The standard 270 degree hydraulic swivel discharge allows for broadcasting chips or an optional forestry style discharge can be ordered for additional chip throwing velocity. A loader is also available as an option eliminating the need for an additional loader on site.

    Bandit Drum-Style Chipper, Model: 20XP, New Condition, 277, 300, 321, 350 hp Engine Horsepower, CAT®, JOHN DEERE, Cummins® Engine Manufacturer, 22 in Maximum Log Diameter, 37 in Drum Diameter, 24 in Drum Width, Diesel Fuel, 60 gal Fuel Tank Capacity, 30 gal Hydraulic Tank Capacity, Whole Tree Feed, Slide Box Feed System, 32 in Feed Wheel Diameter, 270 deg Discharge Rotation, Hydraulic Controlled Swivel Discharge, Towable Mobility, Rubber Tire Undercarriage, 12000 lb Axle Capacity, Electric Brake, Remote Control, Bandit Yellow|Green Paint Color, Add-On Options Available: 5-1/2 ft Infeed Conveyor, 220 in L x 102 in W x 128 in H, 20000 lb Machine Weight

      37" diameter x 24" wide drum with four knives
