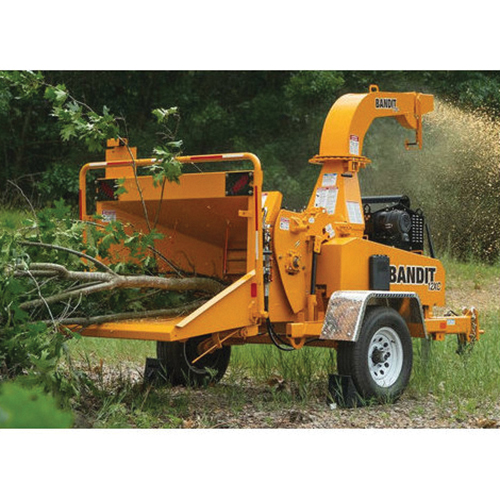

Bandit 12XC

Bandit INTIMIDATOR™ 12XC Drum-Style Chipper, New Equipment, 49 to 74 hp, Diesel, Gas Fuel

Manufacturer: Bandit Industries, Inc
Brand: Bandit
Item Number: 12XC
MPN: 12XC
CPN:
Model #: 12XC
  • Rental AVAILABLE
    Add-On Options Available      :      Hydraulic Lift Cylinder
    Axle Capacity      :      7000 lb
    Brake Type      :      Electric
    Condition      :      New
    Dimensions      :      191 in L x 79 in W x 100 in H
    Discharge Rotation      :      360 deg
    Discharge Type      :      Manual Swivel
    Divisions      :      CAL_LINE
    Drum Diameter      :      20 in
    Drum Width      :      13-1/4 in
    Engine Horsepower      :      49 to 74 hp
    Feed Motor Type      :      Hydraulic
    Feed Rate      :      100 fpm
    Feed System Type      :      Pivot Arm

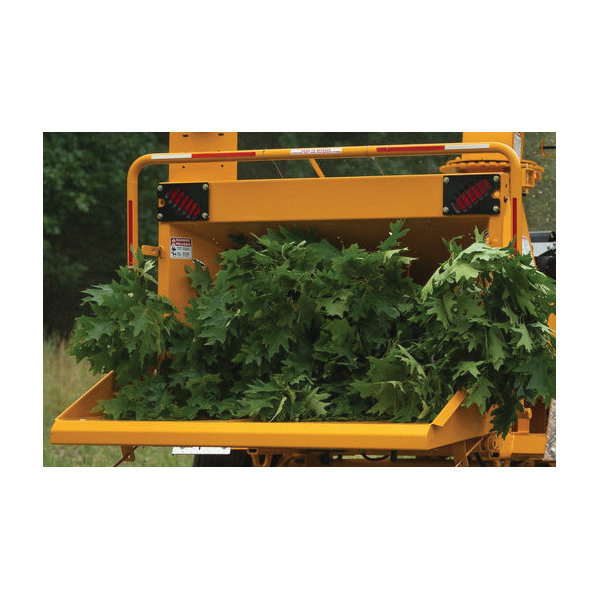

    Feed Type      :      Hand Feed
    Feed Wheel Diameter      :      15-3/4 in
    Feed Wheel Width      :      15-7/8 in
    Fuel Tank Capacity      :      18 gal
    Fuel Type      :      Diesel, Gas
    Hydraulic Tank Capacity      :      8 gal
    Infeed Opening Height      :      30-3/4 in
    Infeed Opening Width      :      54 in
    Knife Count      :      2
    Machine Weight      :      4400 to 4800 lb
    Maximum Branch Diameter      :      12 in
    Mobility Type      :      Towable
    Model      :      12XC
    Number of Axle      :      1
    Number of Tires      :      2
    Paint Color      :      Bandit Yellow|Green
    Tire Size      :      235/80 R16
    Undercarriage Type      :      Rubber Tire

    The 12XC will process tree trimmings, limbs, and brush quickly and efficiently. The 15 3/4" diameter single top feed wheel will pull in and compress stubborn branches, guiding them to the drum. Adjustable side mounted down pressure springs allow for a range of down pressure settings and an optional hydraulic lift cylinder is available to enhance down pressure capabilities reducing the need to trim or re-position material leading to greater productivity. A durable 20" diameter x 13 1/4" wide two-knife drum is standard with the fabricated components backed by a 5-year "GUTS" warranty. To assist with enhanced chipping throwing power, a slot called the "Power Slot" is located on the front side of the drum housing allowing for increased air flow or in the event of machine plugging significantly simplifying the unplugging process. The 12XC is available with Mitsubishi gas engine options in 49 or 74 horsepower. If your preference is diesel, Kohler 49 or 74 horsepower diesel engines are also offered. Depending on the engine, the drum is engaged by a PSI Auto or NACD spring-loaded clutch.

    Bandit INTIMIDATOR™ Drum-Style Chipper, Model: 12XC, New Condition, 49 to 74 hp Engine Horsepower, 12 in Maximum Branch Diameter, 20 in Drum Diameter, 13-1/4 in Drum Width, Diesel, Gas Fuel, 18 gal Fuel Tank Capacity, 8 gal Hydraulic Tank Capacity, 2 Knife Count, Hand Feed Feed, Pivot Arm Feed System, 100 fpm Feed Rate, 15-3/4 in Feed Wheel Diameter, 15-7/8 in Feed Wheel Width, Hydraulic Feed Motor, 30-3/4 in Infeed Opening Height, 54 in Infeed Opening Width, 360 deg Discharge Rotation, Manual Swivel Discharge, Towable Mobility, Rubber Tire Undercarriage, 7000 lb Axle Capacity, 1 Axle, Electric Brake, 235/80 R16 Tire, 2 Tires, Bandit Yellow|Green Paint Color, Add-On Options Available: Hydraulic Lift Cylinder, 191 in L x 79 in W x 100 in H, 4400 to 4800 lb Machine Weight

      49.4 - 74 horsepower gas and diesel engine options available
