Our lineup of HPM foundation drill rigs offer the best torque-to-weight ratio in the market. Engineered by industry experts, each foundation drill rig is designed to provide decades of reliable performance.
HPM | Hydraulic Performance Machines
Hydraulic Performance Machines, or HPM, manufactures foundation drill rigs with the latest advancements in drill technology. Their machines offer drill rig operators highly customizable options and industry-leading performance.
Thanks to HPM’s modular design, drill rig operators can tailor their rig to handle various drilling applications. Which includes:
Bored Piles
Low-Headroom
Cased Bored Piles
Displacement
Soil Mixing
And more
All HPM foundation drill rigs feature expandable undercarriages and a low center of gravity for improved stability when drilling in challenging conditions. To further adapt to unforeseen working conditions, these multifunctional machines are easily convertible from a tall to short mast configuration. Which allows operators to easily handle low-headroom applications.
HPM Foundation Drill Rig Highlights
HPM foundation drill rigs come with innovative patens that increase safety and productivity. These unique features include:
10+10 Rotary Gear System: allows operators to quickly reach the most suitable working and discharging speeds by simply pressing a button on the joystick.
Self-Erecting Counterweight: safely loads and unloads the CAT counterweight without cranes or other lifting devices.
Auxiliary House Lock: makes use of the whole machine’s torque, preventing the machine from swinging from side to side.
HPM Foundation Drill Rig Lineup
Our lineup of HPM Foundation Drill Rigs is engineered by a team of industry experts and utilizes the power and reliability of Caterpillar® bases and industry-leading components.
Key HPM Foundation Drill Rig Components:
Ergonomic Comfort Cabin
Remote Control
Automatic Functions
Drilling Cruise Control
Counterweight Lifting System
Expandable Tracks
Long Mast Configuration
Low-headroom Configuration
HPM 90 Foundation Drill Rig
The revolutionary HPM 90 foundation drill rig was designed and built to offer foundation drilling contractors a powerful, efficient, and safe solution for a variety of jobs.
Mounted on a CAT 313NGH base, the HPM 90 packs a powerful 66,400 ft. lbs. of torque. Plus, with a retractable undercarriage, transporting its total weight of 53,000 lbs. in the short mast configuration and 55,000 lbs. in the tall mast, is a total breeze.
HPM 125 Foundation Drill Rig
HPM’s 125 foundation drill rig is ideal for foundation, rathole, and landfill drilling. Its compact dimensions and ease of setup result in low operating and haulage costs.
The 125 is mounted on a CAT 323 Narrow Base and CAT expandable undercarriage. It features an auto-verticalization of the mast, return to drilling point feature, and a rig-up from transport to working phase.
HPM 180 Foundation Drill Rig
HPM’s 180 was designed to handle powerline and substation jobs. It fits an 1800mm tool along the mast and offers easy access to a wide range of drilling depths.
HPM’s 180 is mounted on a CAT 330 base and comes equipped with a CAT C7.1 engine. The HPM 180 can be transported in one load and easily set up in no time, all thanks to it eliminating the need for assembly/disassembly phases during transport.

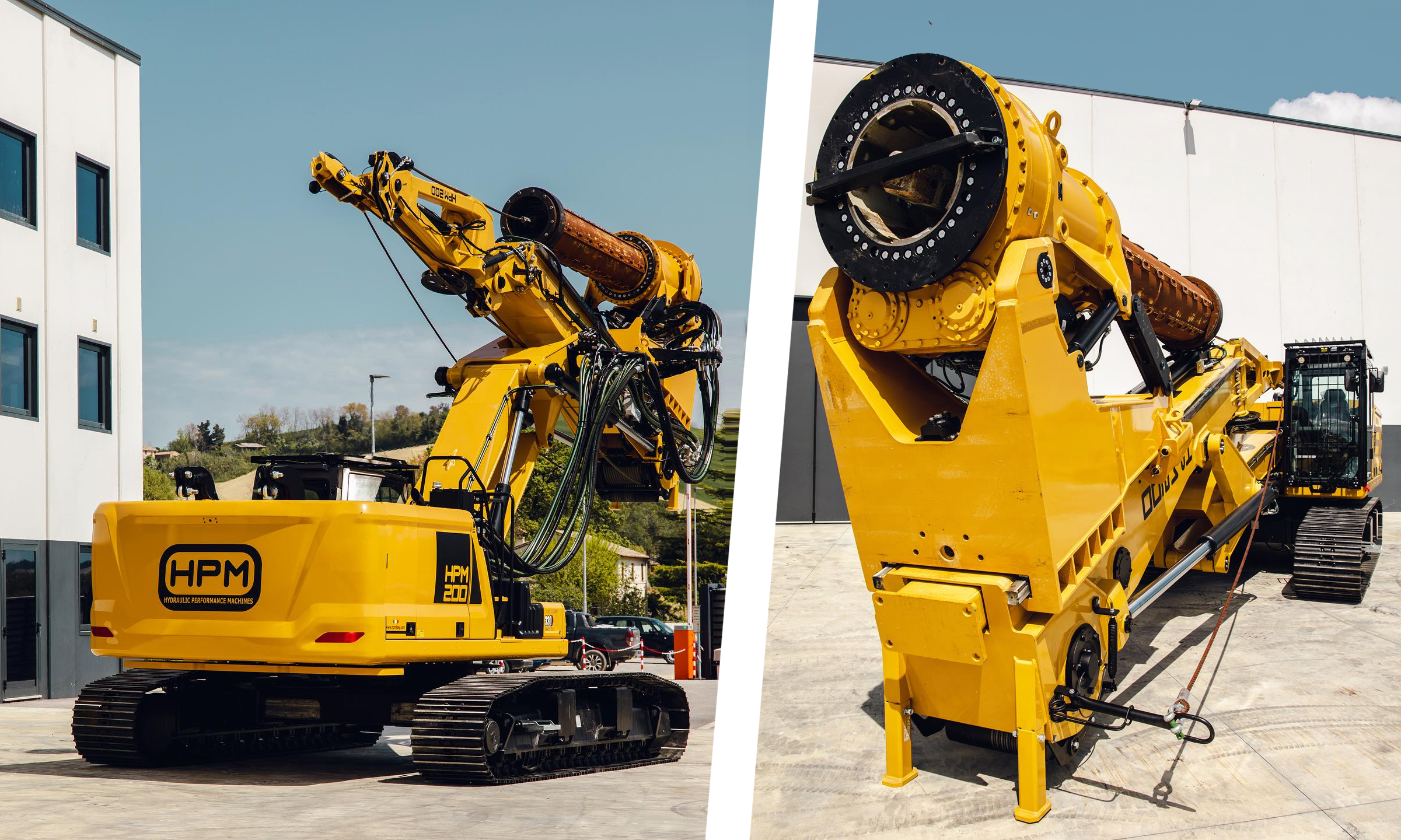

HPM 200 Foundation Drill Rig
The HPM 200 features a modular design that allows operators to convert this rig into differing configurations, which includes a short mast – 11’ version.
The HPM 200 is mounted on a CAT 330 NGH base and, like the HPM 180, comes equipped with a CAT C7.1 engine. This rig is suitable for a variety of foundation drilling applications and can easily be converted into a short mast configuration.
HPM 250 Foundation Drill Rig
HPM’s 250 is the most powerful foundation drill rig in our lineup. This machine provides an effective torque of 315kNM and 400kN of crowd pull. Which makes working with large casings much easier. The HPM 250 is mounted on a CAT 340 excavator base and a CAT expandable undercarriage. Components like the Kelly bar, rotary, and counterweight system can all be mounted by the machine itself. Allowing operators to perform a quick, automatic rig-up from the safety of HPM’s comfort cabin.
Your HPM Foundation Drill Rig Dealer
We offer a wide range of foundation drill rig equipment, parts, service, and more. Contact us today to learn more about HPM’s line of foundation drill rigs.
